V-3 Submersible Pump
V-4 (100 mm) Pump Sets
V-6 (150mm) Pump Sets K Type
Openwell & Mini Openwell S.S. & C.I. Model
Openwell & Mini Openwell S.S. & C.I. Model
ASTRON Horizontal Openwell Submersible pump are suitable for open wells. Crafted to deliver world class performance, Horizontal Openwell Submersible pump are built using top quality raw material and superior designs to ensure best in-class performance. With the Astron Horizontal Openwell Submersible pump, maintenance is never an issue and operating costs are low as they get. Unmatched and unique hydraulic design of pump volute chamber, bowl and impeller put together make the pump extremely energy efficient.
Special Features :
- Special hi-flow & hi Head Models
- Long durability due to non corrosive S.S. body
- high discharge & low power consumption
- Excellent performance even at low voltage
- Special design to prevent winding burn out
Operating Limits :
- Power Range : 0.5 H.P. to 2.0. H.P. (240 v. 50Hz Ac Single Phase)
3.0 H.P. to 10 0 H.P. (420 v. 50Hz Ac Three Phase) - Speed : 2800 RPM
- Max. Discharge : 1200 LPM
- Max. Discharge : 100 LMP
- Max. Head : 250 Feet
- Max. Temp. : 30*C

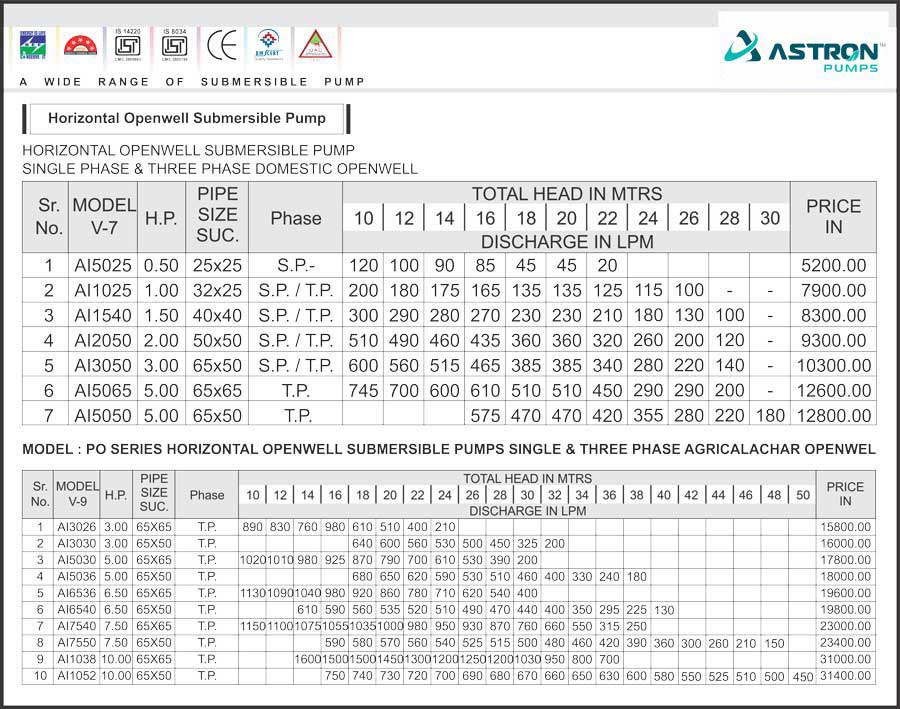

Openwell Performance Charts :
