V-4 (100 mm) Pump Sets

image 3

ASTRON 4" Submersible Borewell pump suitable for 4" borewell made with superior quality raw material, unique design to ensure best in-class performance with lowest operating cost and zero maintenance for years. Matchless and unique hydraulic design of bowl, impeller and diffuser put together construct the pump most energy efficient. Highly sophisticated engineering and State of the art manufacturing process results the world class quality and consistency.

Astron's Borehole submersible pumps suitable for 4" or larger borehole. Astron Pumps are manufactured from corrosion & abrasion resistant materials. Close coupled to a submersible electric motor.

V4 submersible pumps for wells from 4 to 8 inches wells, with 2-pole electric motors. The most complete range of submersible electric pumps to meet all your borehole pumping applications suitable to replace standard surface pumps, carrying the advantages of lesser space needed, less maintenance and complete absence of noise. In all domestic, industrial and agricultural applications, where it is required to life water out from below the ground and to push it above with pressure.


Special Features :

  • 30% lower Power consumption
  • Long durability due to non corrosive S.S. body
  • Sand & mud proof design modal
  • Special design to withstand wide voltage fluctuations
  • Excellent performance even at low voltage
  • Special sand guard used to prevent ingrees of solids of foreign particles

Operating Limits :

  • Power Range : 0.5 H.P. to 5.0 H.P. (220 v, 50Hz Ac Single Phase)
    0.75 H.P. to 5.0 H.P. (415 v, 50Hz Ac Three Phase)
  • Speed : 2800 RPM
  • Max. Discharge : 350 LPM
  • Max. Discharge : 10 LPM
  • Max. Head : 1000 Feet
  • Per Stage Head : 20 Feet
  • Max. Temp. : 30*C

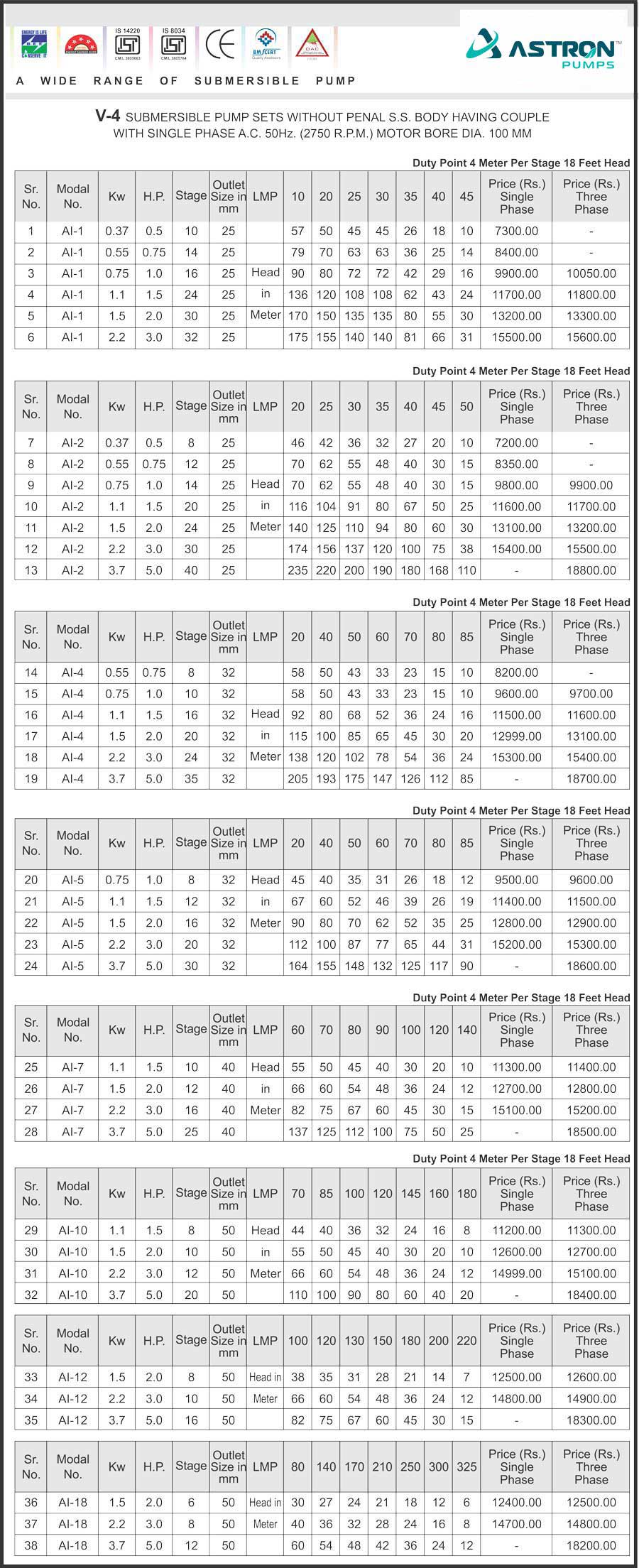

V4 Performance Charts :
